Potlicquor Posted November 8, 2017 Report Share Posted November 8, 2017 ... ‘Hi all’, need help: my 2015 D J Crossroad driver’s seat plastic trim/shield panel/cover (where the driver seat power adjustment knobs are) has broken where that decades old factory design flaw metal tab is (I know it is supposed to hold the top part secure but it also breaks the plastic there) does anyone on here have the replacement part number and instruction or video of how to remove it so I can order a replacement and install it, thanks. Quote Link to comment Share on other sites More sharing options...
2late4u Posted November 9, 2017 Report Share Posted November 9, 2017 have no idea what you are talking about Quote Link to comment Share on other sites More sharing options...
larryl Posted November 9, 2017 Report Share Posted November 9, 2017 (edited) We dont but a dealer will have a part number or head to a wrecking yard Edited November 9, 2017 by larryl Quote Link to comment Share on other sites More sharing options...
jkeaton Posted November 9, 2017 Report Share Posted November 9, 2017 They all break. Mine broke, I just used a self tapping screw to reattach it. Quote Link to comment Share on other sites More sharing options...
Potlicquor Posted November 9, 2017 Author Report Share Posted November 9, 2017 15 hours ago, 2late4u said: have no idea what you are talking about ... if yours broke you would know, thanks for reading my post though. Quote Link to comment Share on other sites More sharing options...
Potlicquor Posted November 9, 2017 Author Report Share Posted November 9, 2017 3 hours ago, larryl said: We dont but a dealer will have a part number or head to a wrecking yard ... wish I had thought of that instead of trying to take a short cut on this forum. Quote Link to comment Share on other sites More sharing options...
Potlicquor Posted November 9, 2017 Author Report Share Posted November 9, 2017 50 minutes ago, jkeaton said: They all break. Mine broke, I just used a self tapping screw to reattach it. ... yes, they apparently do and have, virtually, since inception and as such I thought there would be many on here who experienced this issue and would be able to assist with a part number. I will give in and contact the dealership for help. Quote Link to comment Share on other sites More sharing options...
jkeaton Posted November 9, 2017 Report Share Posted November 9, 2017 3 hours ago, Potlicquor said: ... yes, they apparently do and have, virtually, since inception and as such I thought there would be many on here who experienced this issue and would be able to assist with a part number. I will give in and contact the dealership for help. I think that those who has experienced the issue just figure out how to fix it themselves rather than replace the part with the same part that will break again. larryl, Potlicquor and OhareFred 3 Quote Link to comment Share on other sites More sharing options...
OhareFred Posted November 9, 2017 Report Share Posted November 9, 2017 4 hours ago, Potlicquor said: ... wish I had thought of that instead of trying to take a short cut on this forum. Really no need to be a dick..... 2late4u and Potlicquor 1 1 Quote Link to comment Share on other sites More sharing options...
2late4u Posted November 10, 2017 Report Share Posted November 10, 2017 (edited) google ome dodge journey interior parts online..... copy and paste this then click on it then scroll down to your year journey then scroll down to #5 and decide which one you want. took me about 5 minutes to find on the internet. to install it won't be to bad but i believe you will have to undo the seatbelt then reinstall it..... and yes i had to fix my right side on my 2011 and then it broke again after warranty went out, fixed it with a black screw, no more problem , also on my 2014 on the passenger side again broke did the same as jkeaton said a well placed black screw and no more problem Edited November 10, 2017 by 2late4u jkeaton and Potlicquor 2 Quote Link to comment Share on other sites More sharing options...
Potlicquor Posted November 10, 2017 Author Report Share Posted November 10, 2017 ... thank you, that helped me locate the right part and number without having to drive many miles to a dealer. jkeaton and OhareFred 2 Quote Link to comment Share on other sites More sharing options...

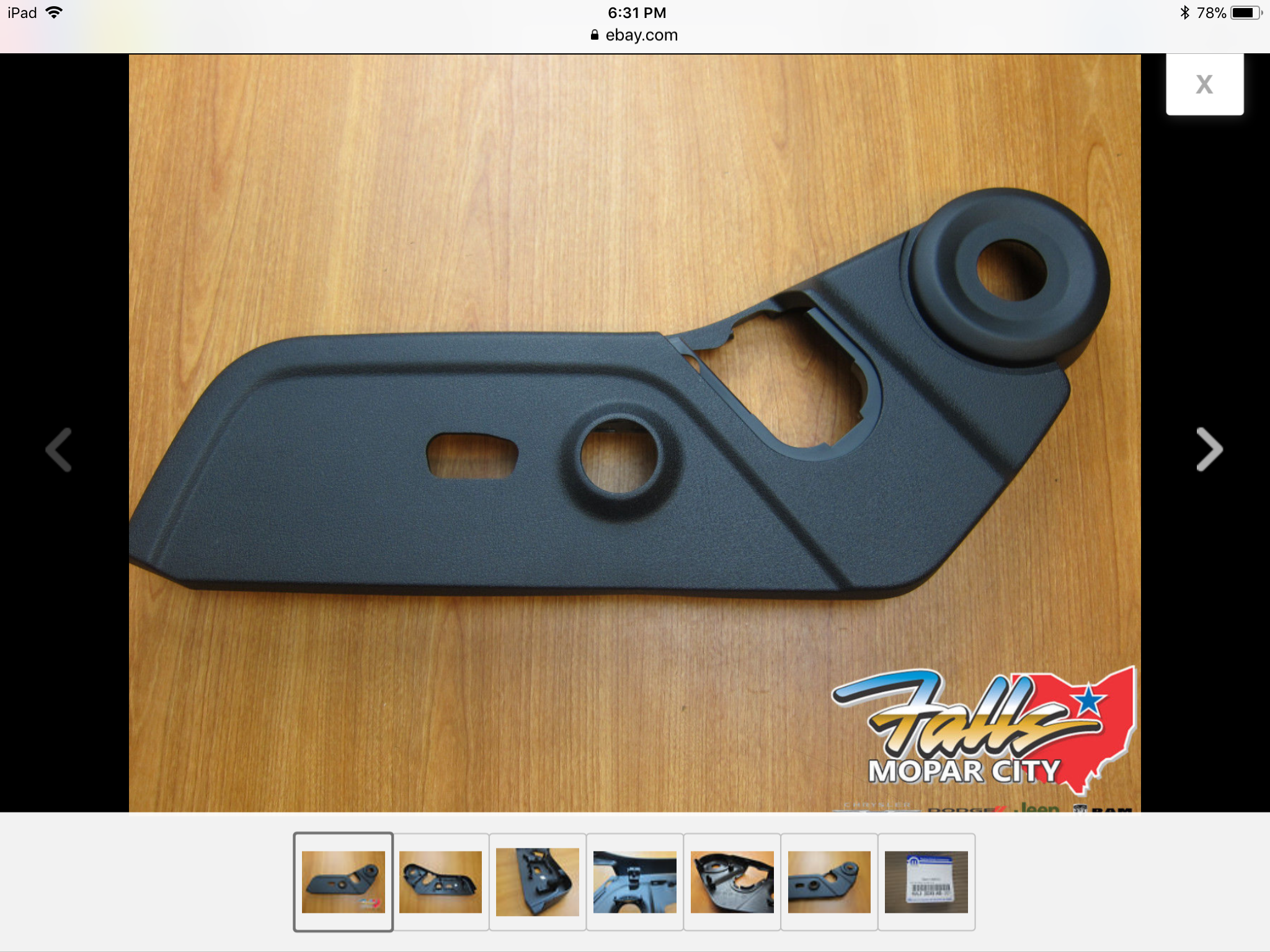

Potlicquor Posted February 17, 2018 Author Report Share Posted February 17, 2018 ... Update: (quite late) but here is a picture of the actual driver’s seat plastic cover part that needed replacing (second time, but not in-warranty this time) so I bought one and replaced it my self in order to save the $100 + labor, taxes, shop fees and whatall ever else. The part cost about $50.00 and about 30 minutes to change out. Also, attached photo of part number in case some on here needs it, thanks to all who assisted on here with this. Please note this part is for the driver’s seat that has auto adjust and lumbar). 2late4u 1 Quote Link to comment Share on other sites More sharing options...
jkeaton Posted February 18, 2018 Report Share Posted February 18, 2018 Should have stocked up on them since it will break again..... Potlicquor and 2late4u 1 1 Quote Link to comment Share on other sites More sharing options...
Potlicquor Posted February 18, 2018 Author Report Share Posted February 18, 2018 ... I’m sure you are correct in that it will break again... but, I don’t have the loose change to stock up, however I do keep an eye out for a reduced price on one but that hasn’t happened as yet. When it does break @ the top plastic mounting tab the plastic is sharp edged and will rip the seat material if not attended to by either cutting away the sharp edges and/or replace the part. Dealership service dept. said it is a very common issue, not with all owners, but with many. Quote Link to comment Share on other sites More sharing options...
2late4u Posted February 18, 2018 Report Share Posted February 18, 2018 well to beat a dead horse, try this ,near where the clip that breaks drill a small hole then use a small black crew that has a small head on it and you won't have no more problems. i've never had my drivers side break but on the passenger side it has broken twice on my 2011 and once on my 2014 reason i figured out is my wife when getting out is kind of dragging her butt as she is exiting the vech, after placing the screw there it has never broken again just enough strength to hold it.. Potlicquor 1 Quote Link to comment Share on other sites More sharing options...
Potlicquor Posted February 18, 2018 Author Report Share Posted February 18, 2018 ... I understand, my wife does virtually all of the driving of this Journey and she is handicapped (wears brace on leg as well) and can’t just get in and out without putting weight/pressure/stress on that top plastic retaining tab. I would be so grateful to you if you could post a couple of pictures of your repair method (black small screw and location) as I am at a loss for ‘where’ exactly it would be installed and I will go ahead and install one now to avert another breakage... which would save time and money too, thanks. Quote Link to comment Share on other sites More sharing options...
2late4u Posted February 18, 2018 Report Share Posted February 18, 2018 i dont know how to post pictures on here but looking at your pic above here the horizontal hole towards the front go about half half towards the front and place a screw there that is where i did mine on the passenger side and just use a small screw about half inch long with a good size head and or washer... my wife has about the same problems as yours and that is why i believe it gets broken as the seat kind of sinks down to the top of the plastic side panel and then gets dragged outward and breaks... good luck do it now before it breaks for a more secure sde panel .... Potlicquor 1 Quote Link to comment Share on other sites More sharing options...
Potlicquor Posted February 18, 2018 Author Report Share Posted February 18, 2018 ... thank you, I will install a screw in that approximate location. Quote Link to comment Share on other sites More sharing options...
