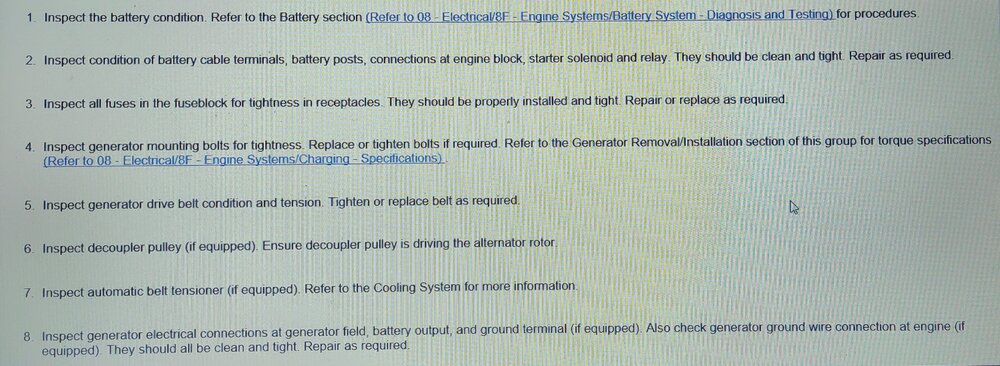

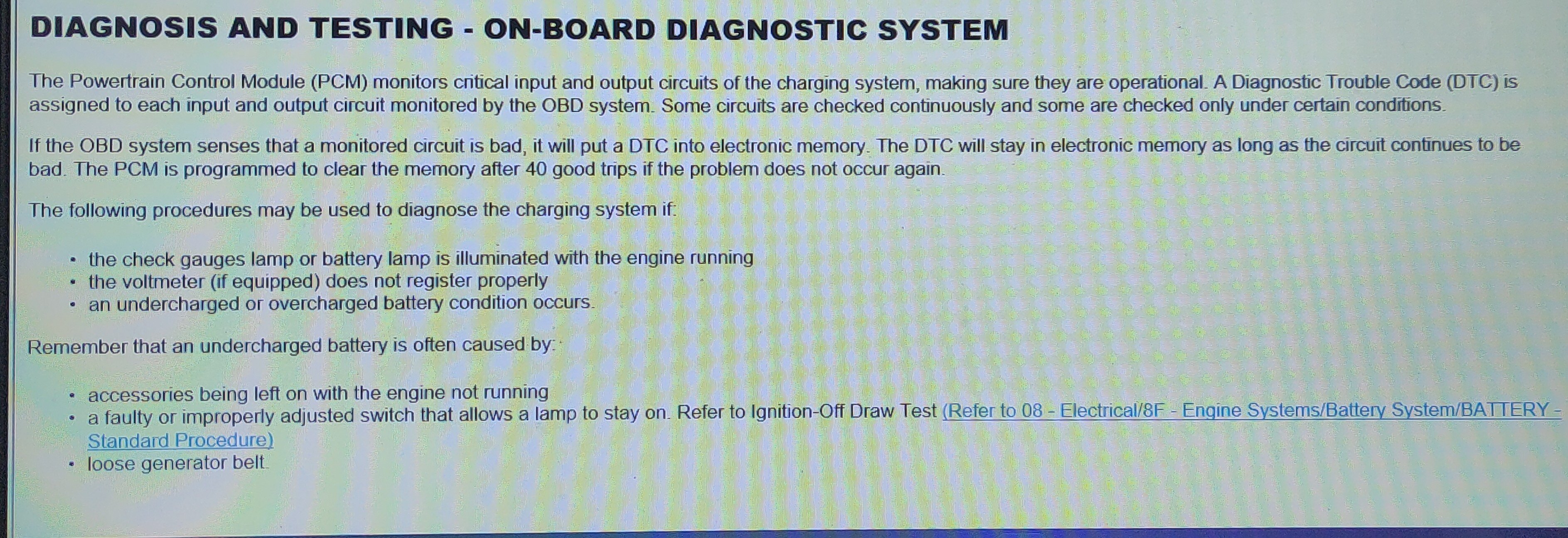

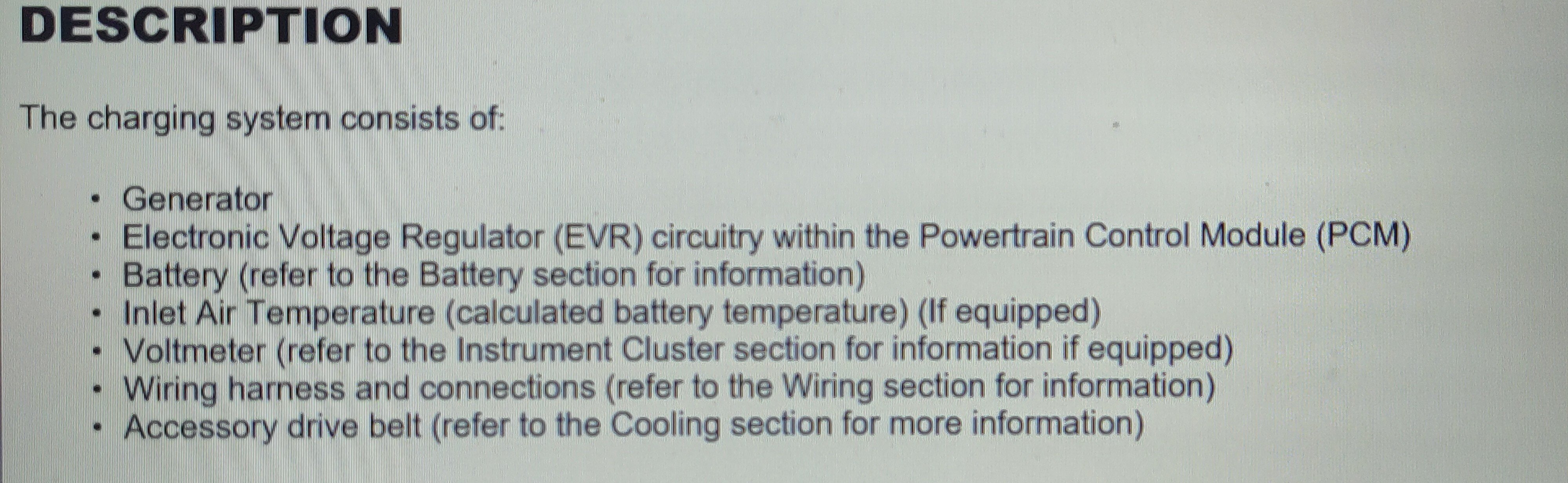

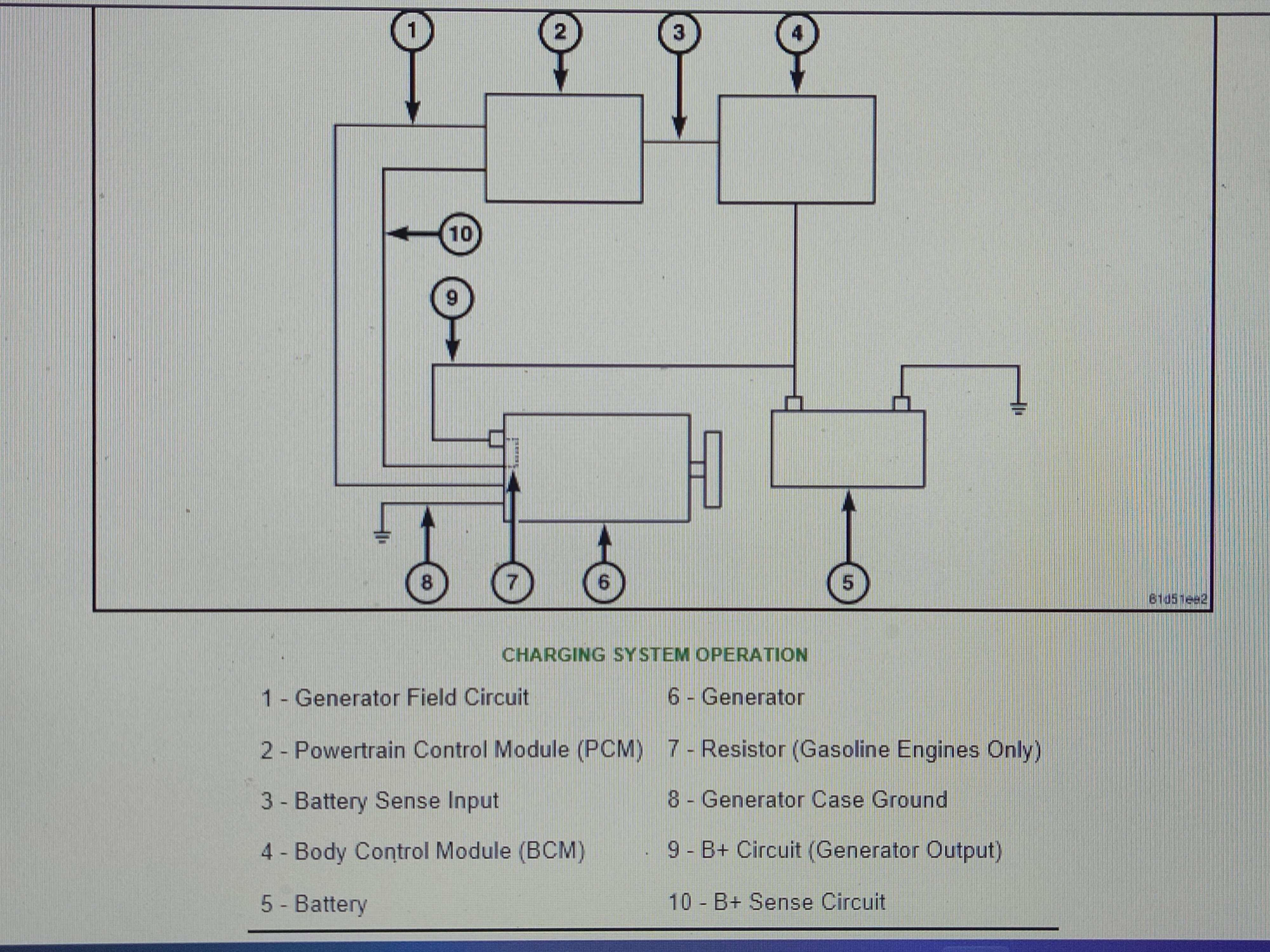

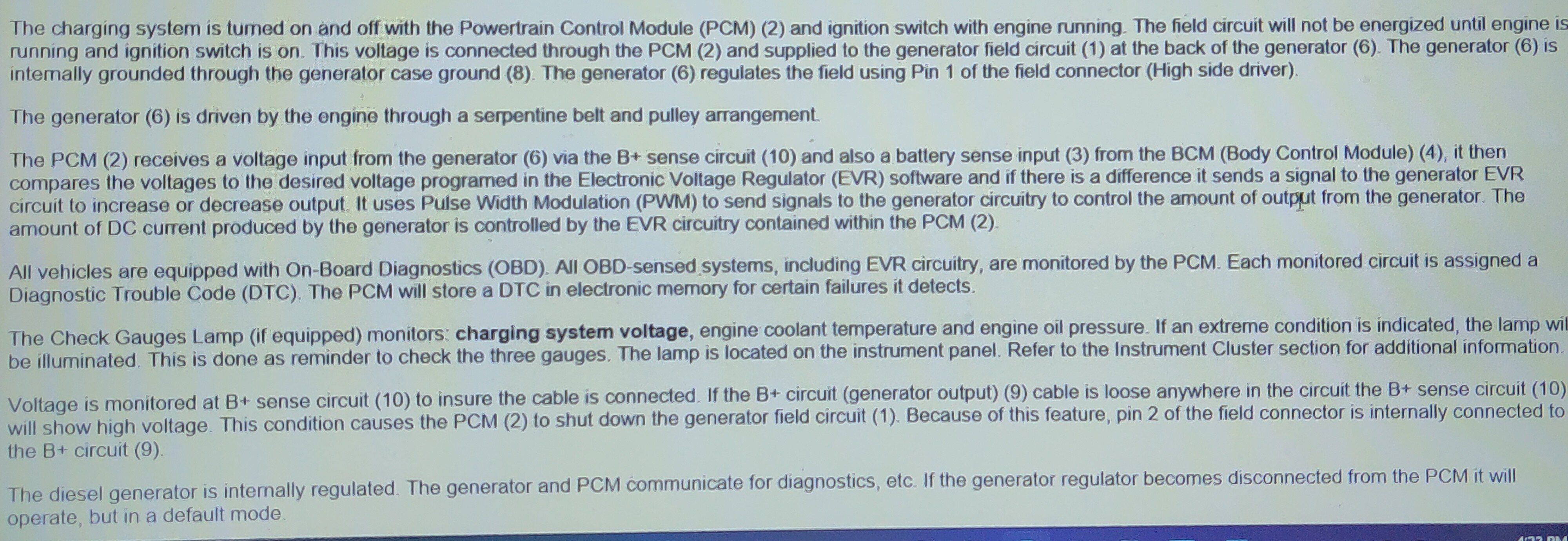

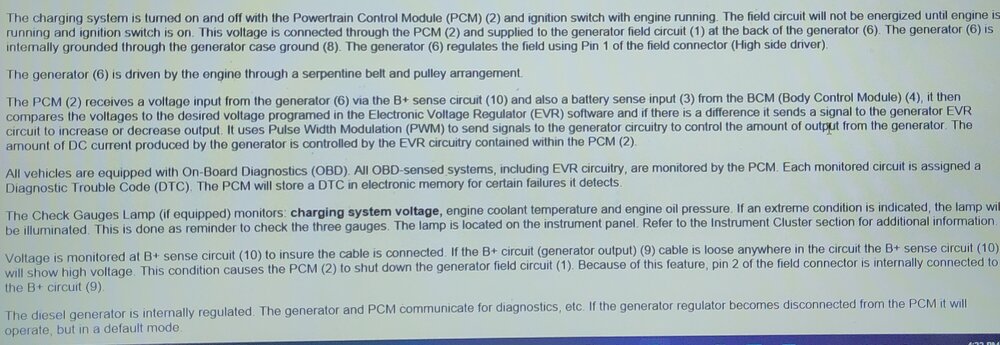

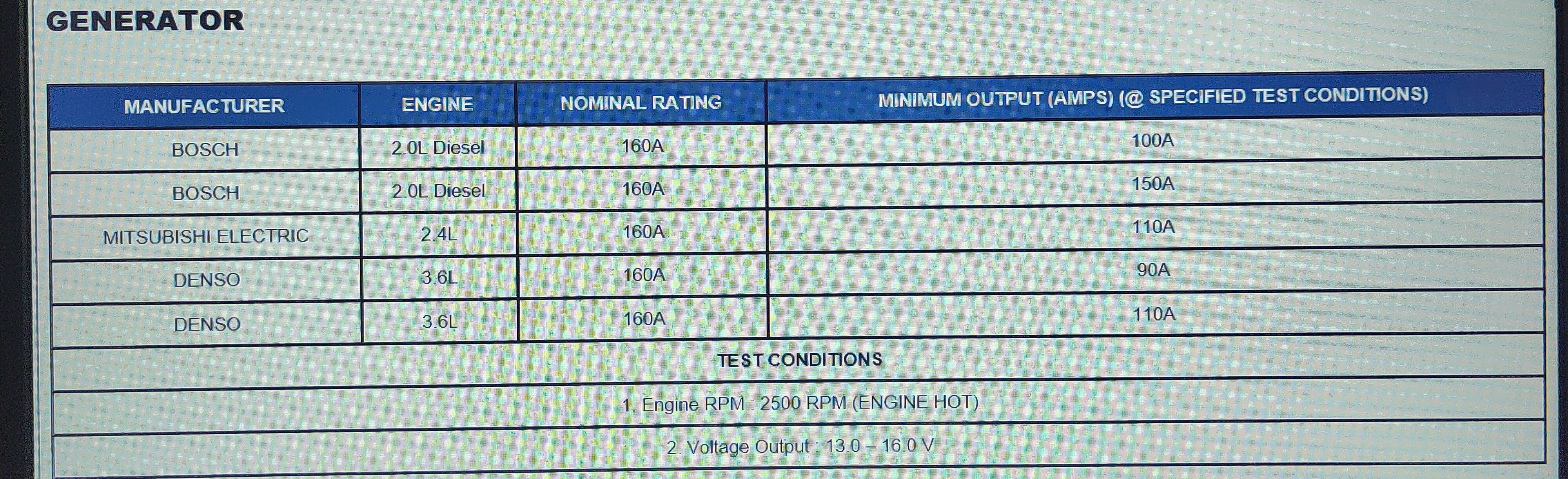

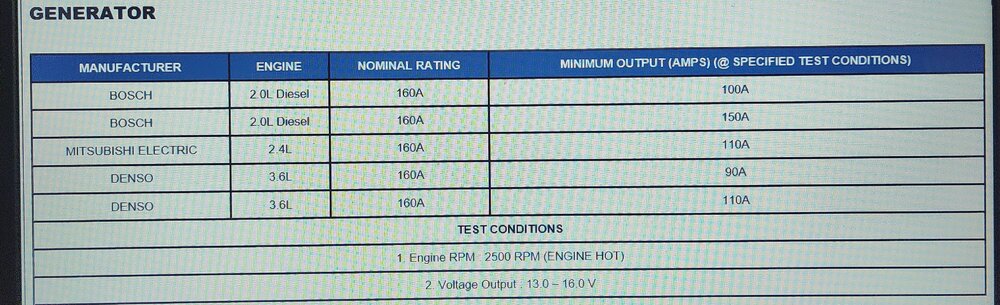

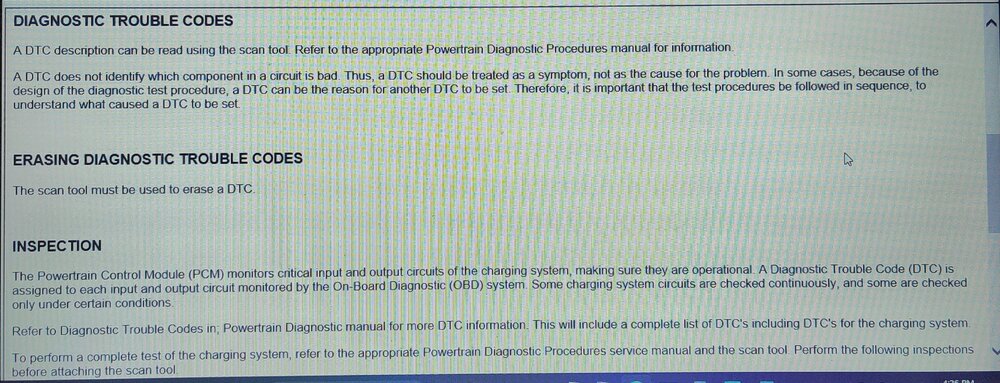

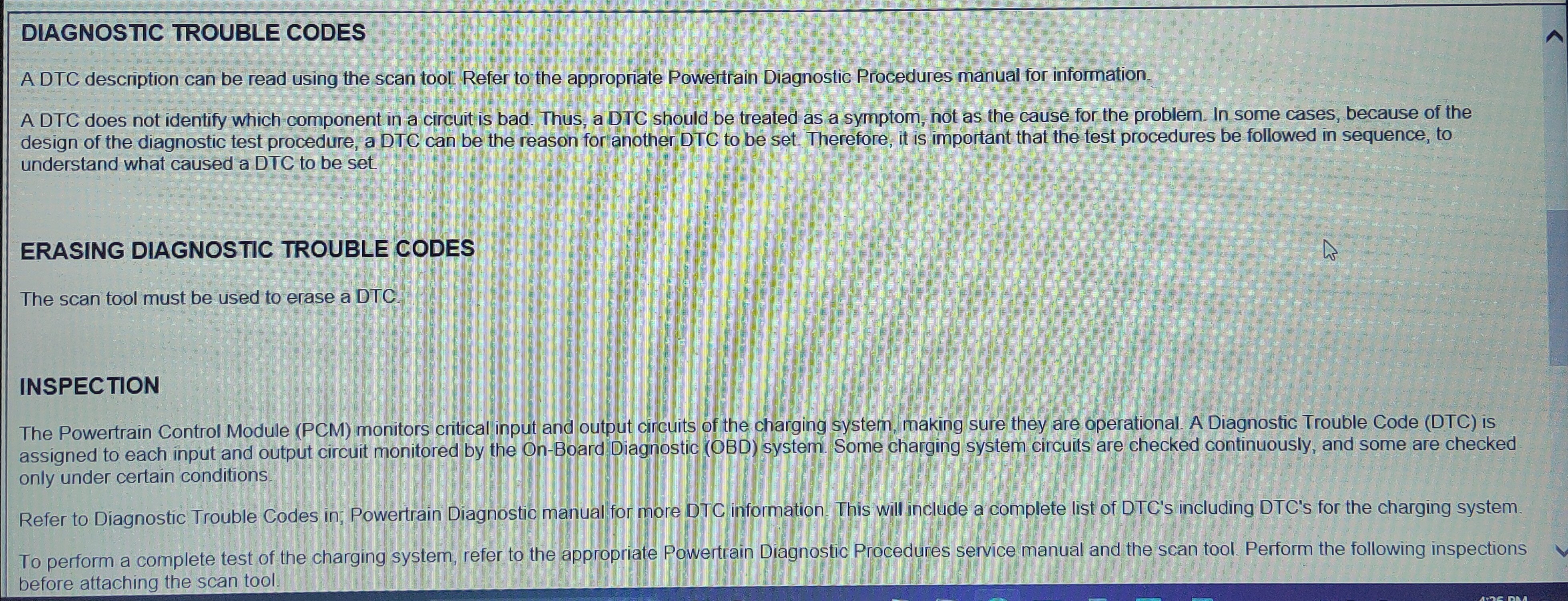

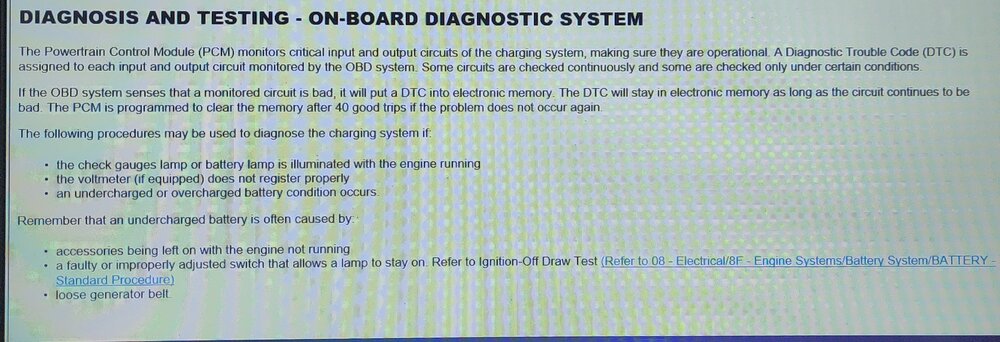

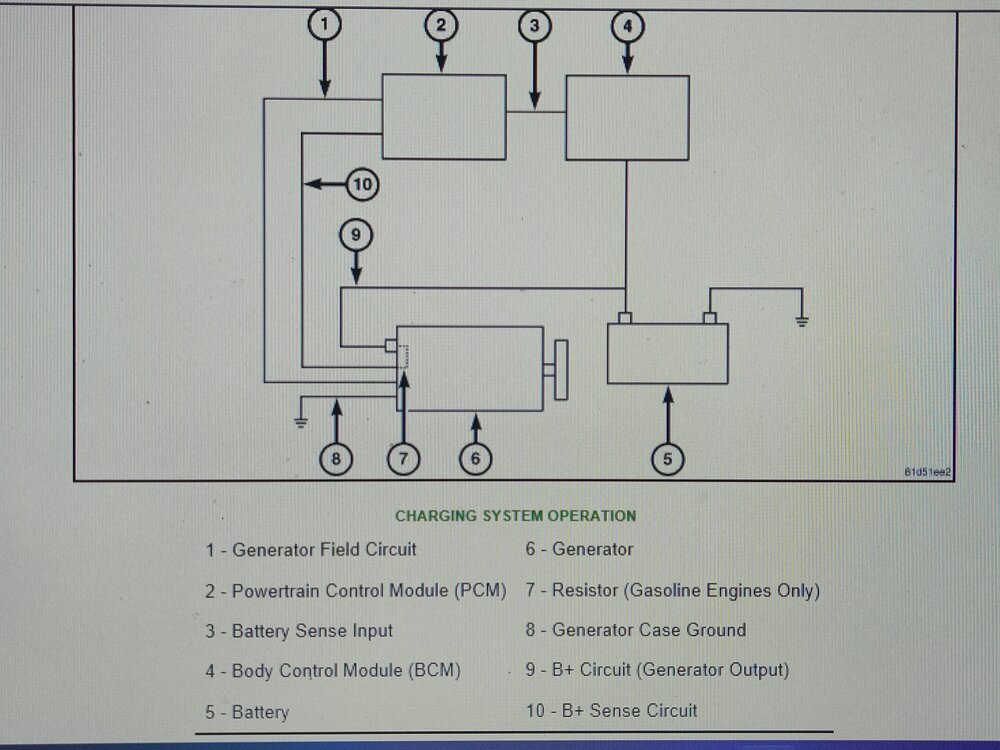

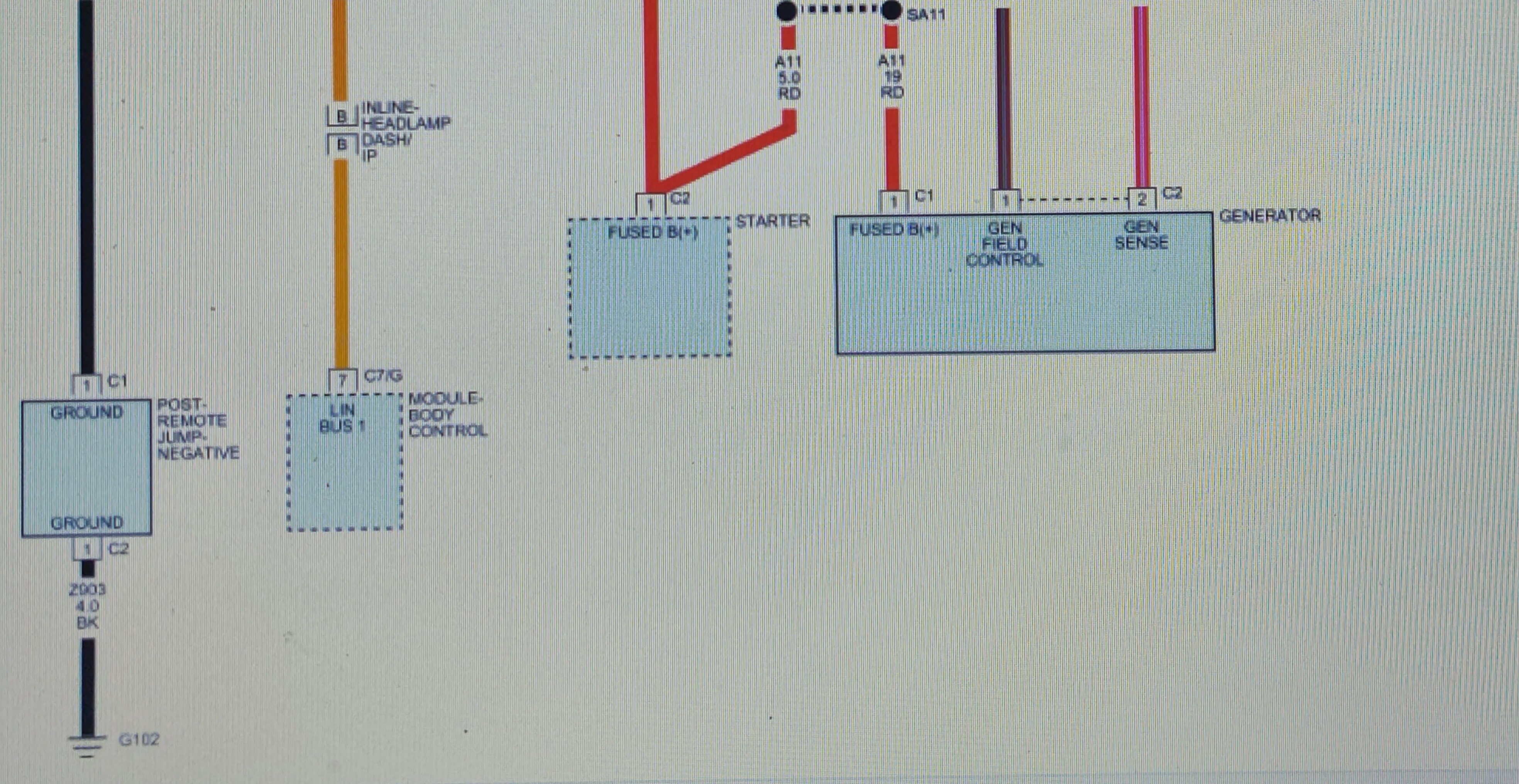

Dean H Posted July 20 Report Share Posted July 20 This from the 2016 Dodge service cd. Quote Link to comment Share on other sites More sharing options...
Dean H Posted July 20 Author Report Share Posted July 20 Quote Link to comment Share on other sites More sharing options...

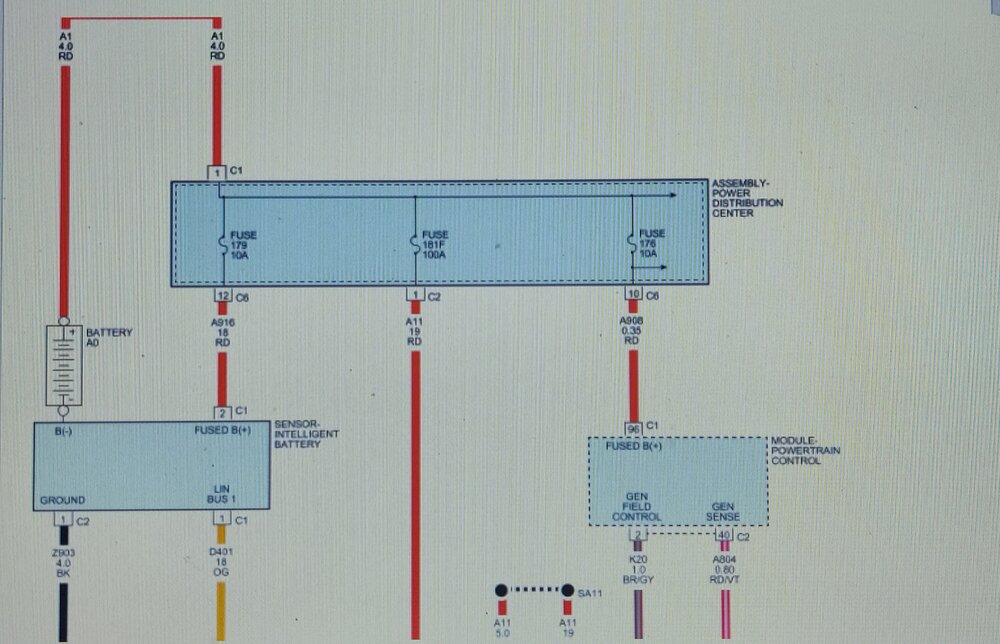

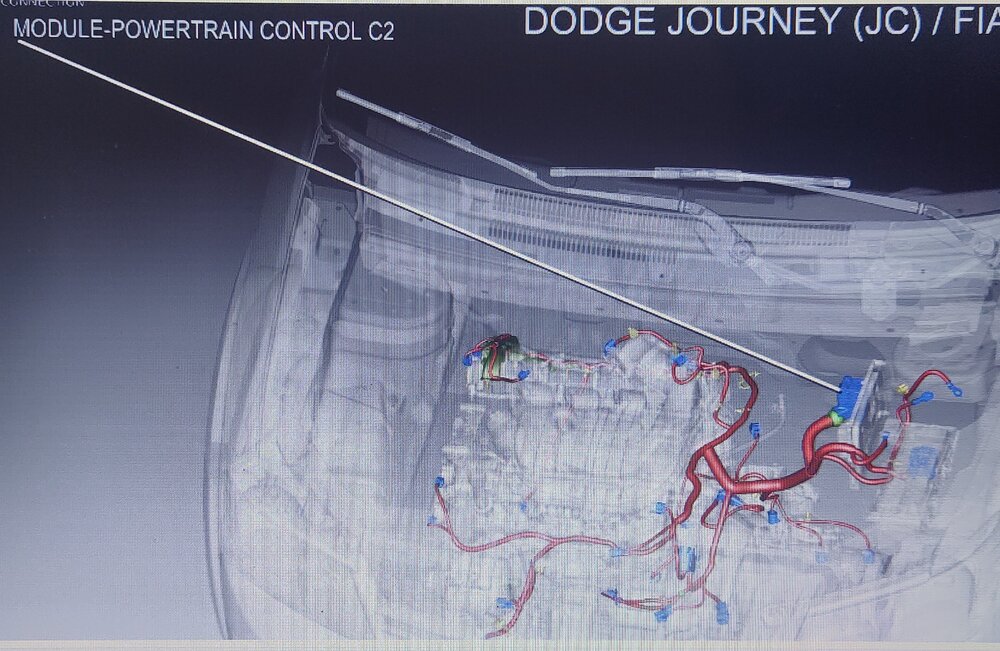

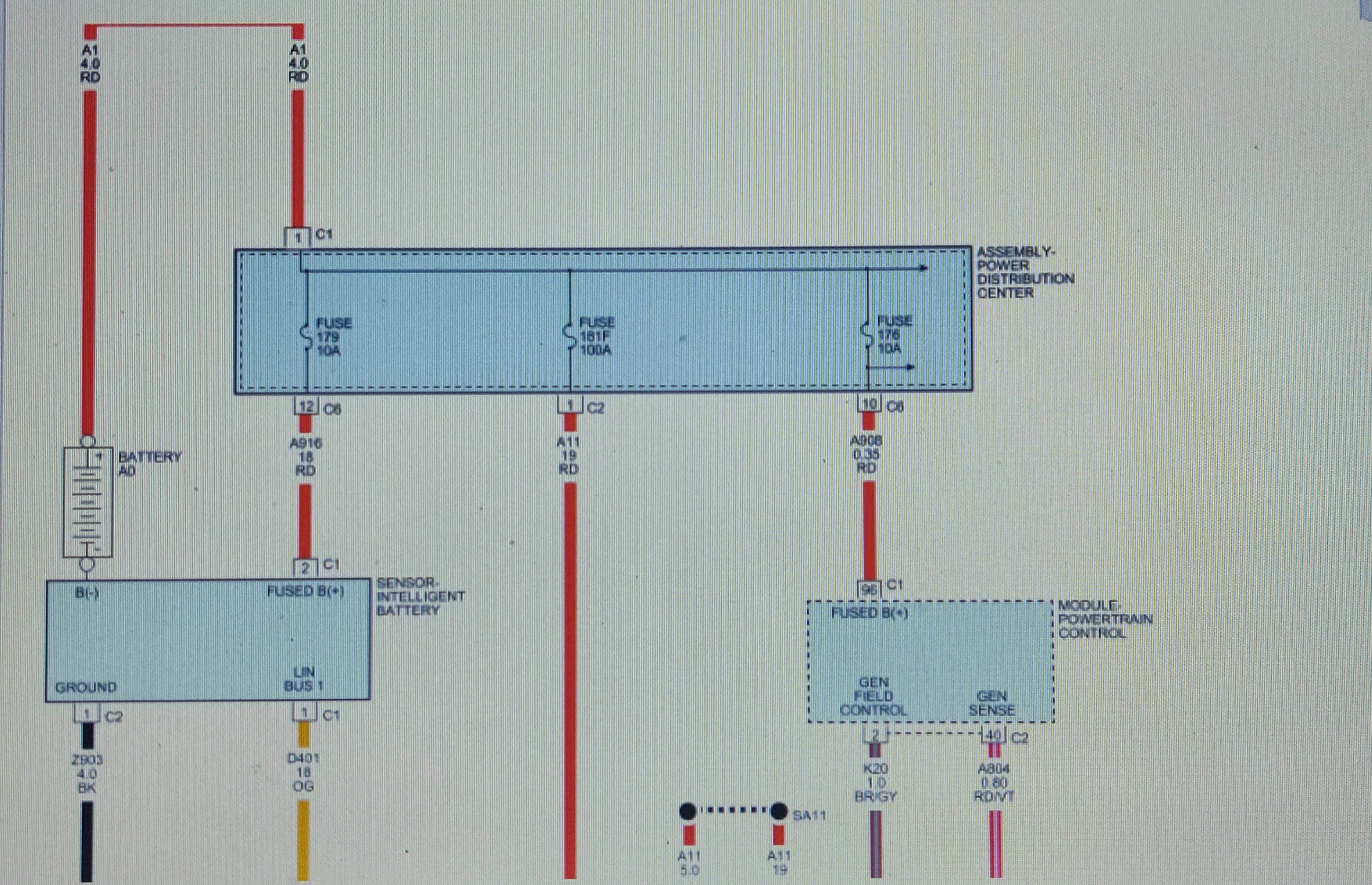

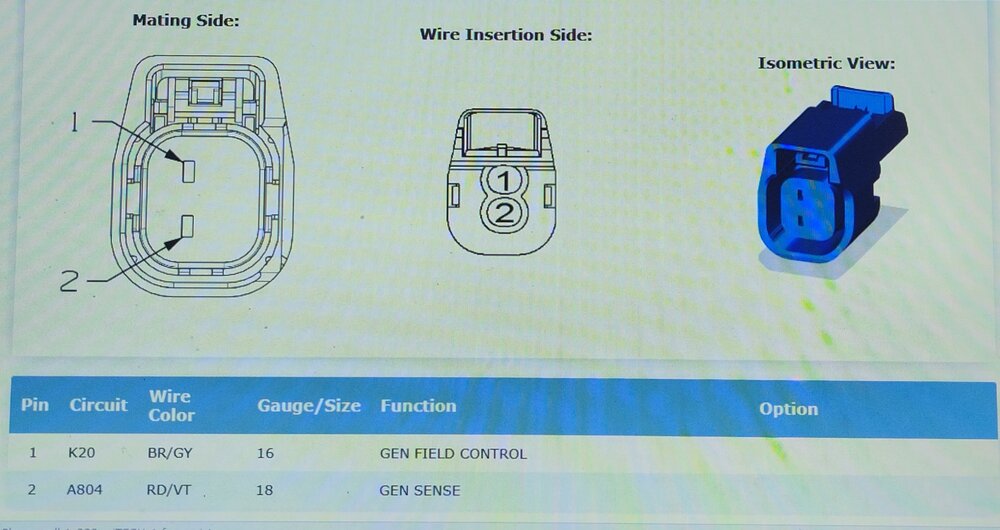

Dean H Posted July 20 Author Report Share Posted July 20 (edited) Alternator PCM wires plug. PCM connector - Edited July 20 by Dean H Quote Link to comment Share on other sites More sharing options...

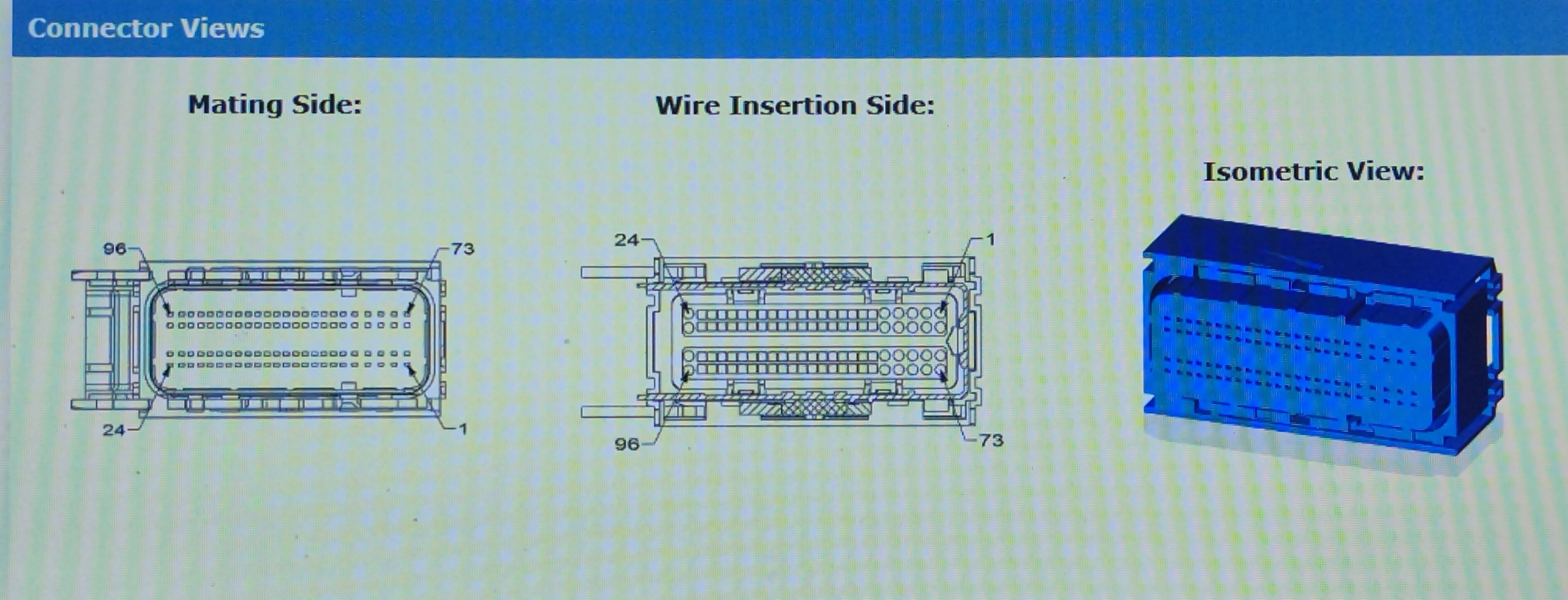

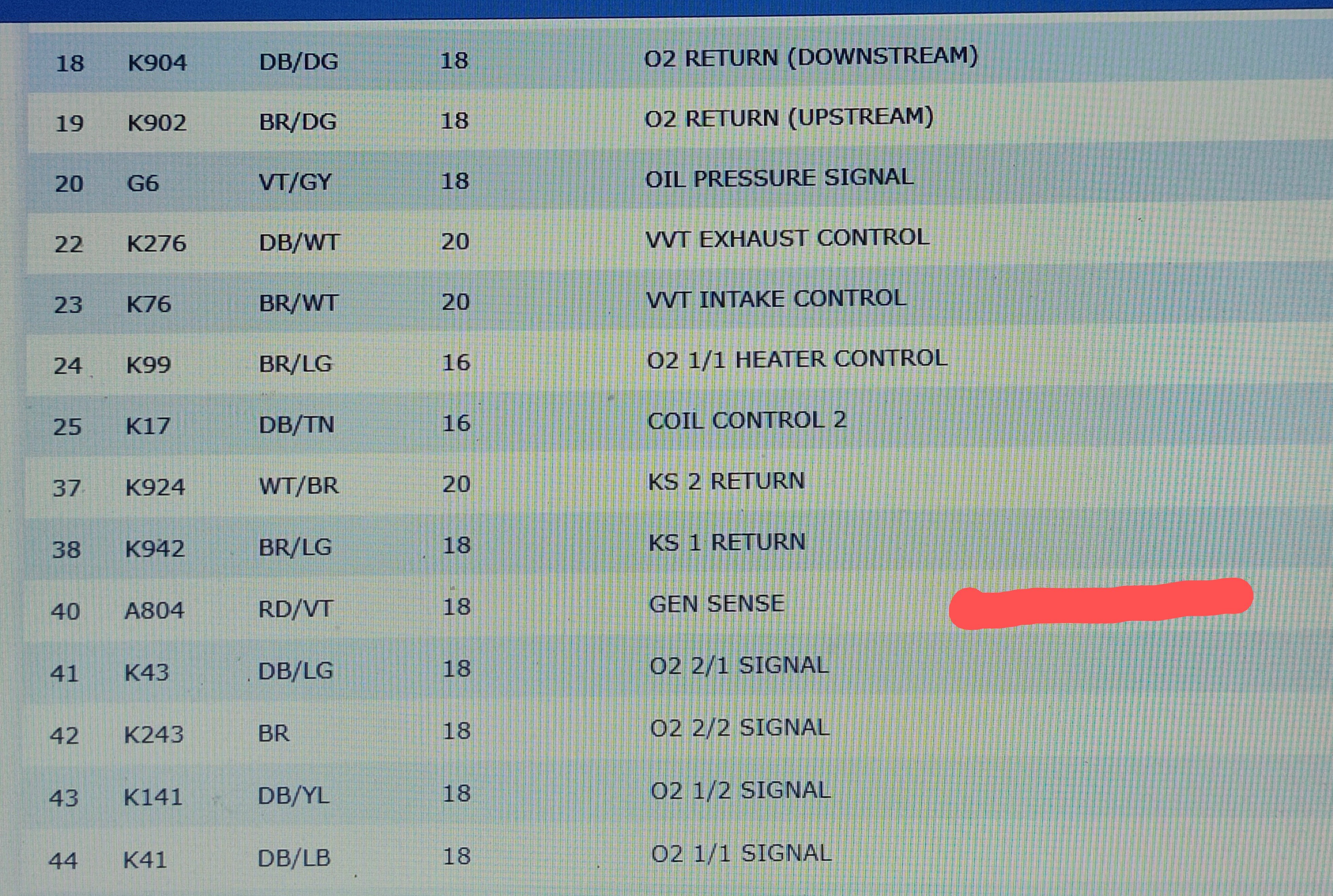

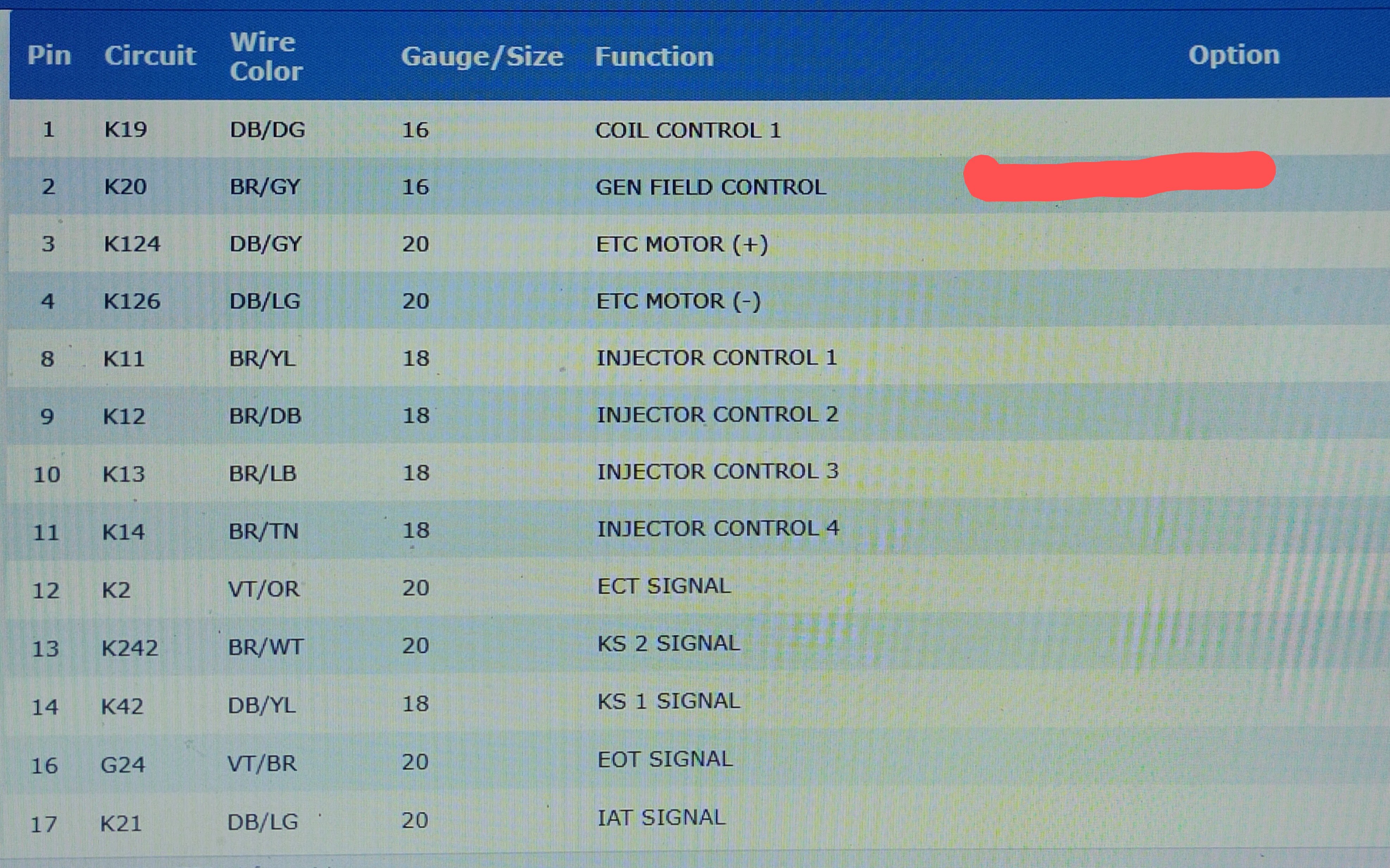

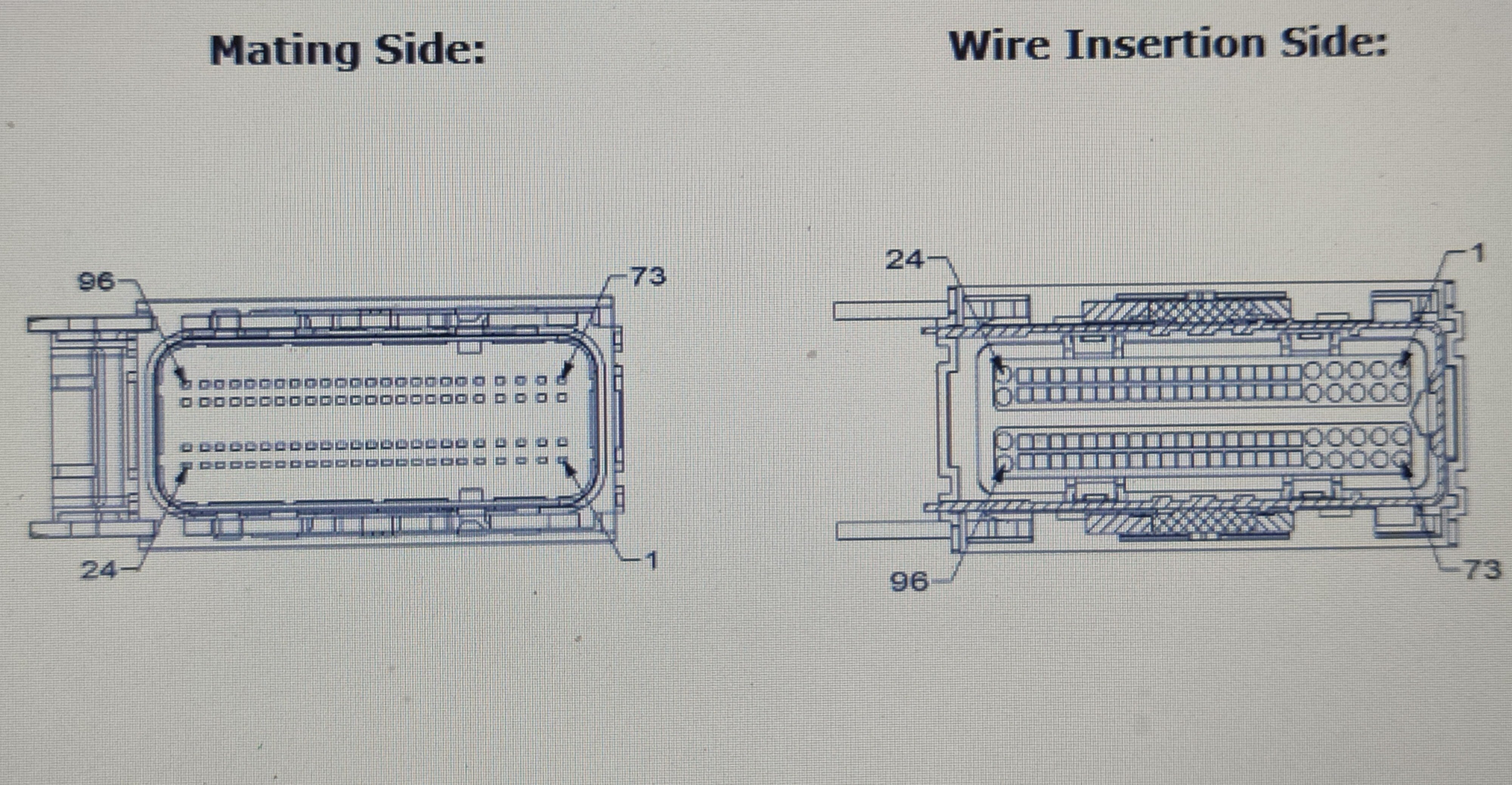

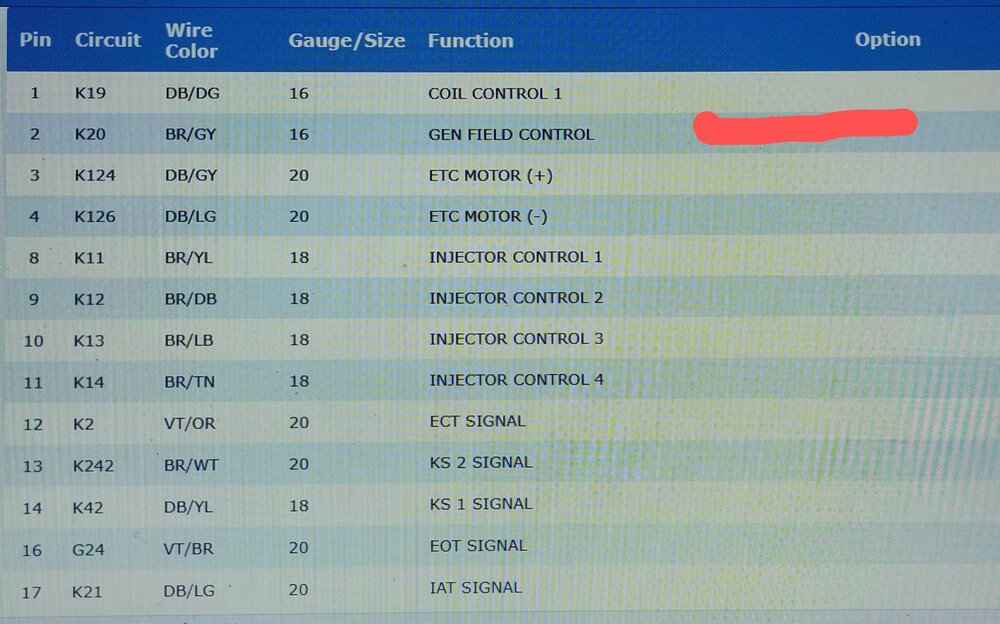

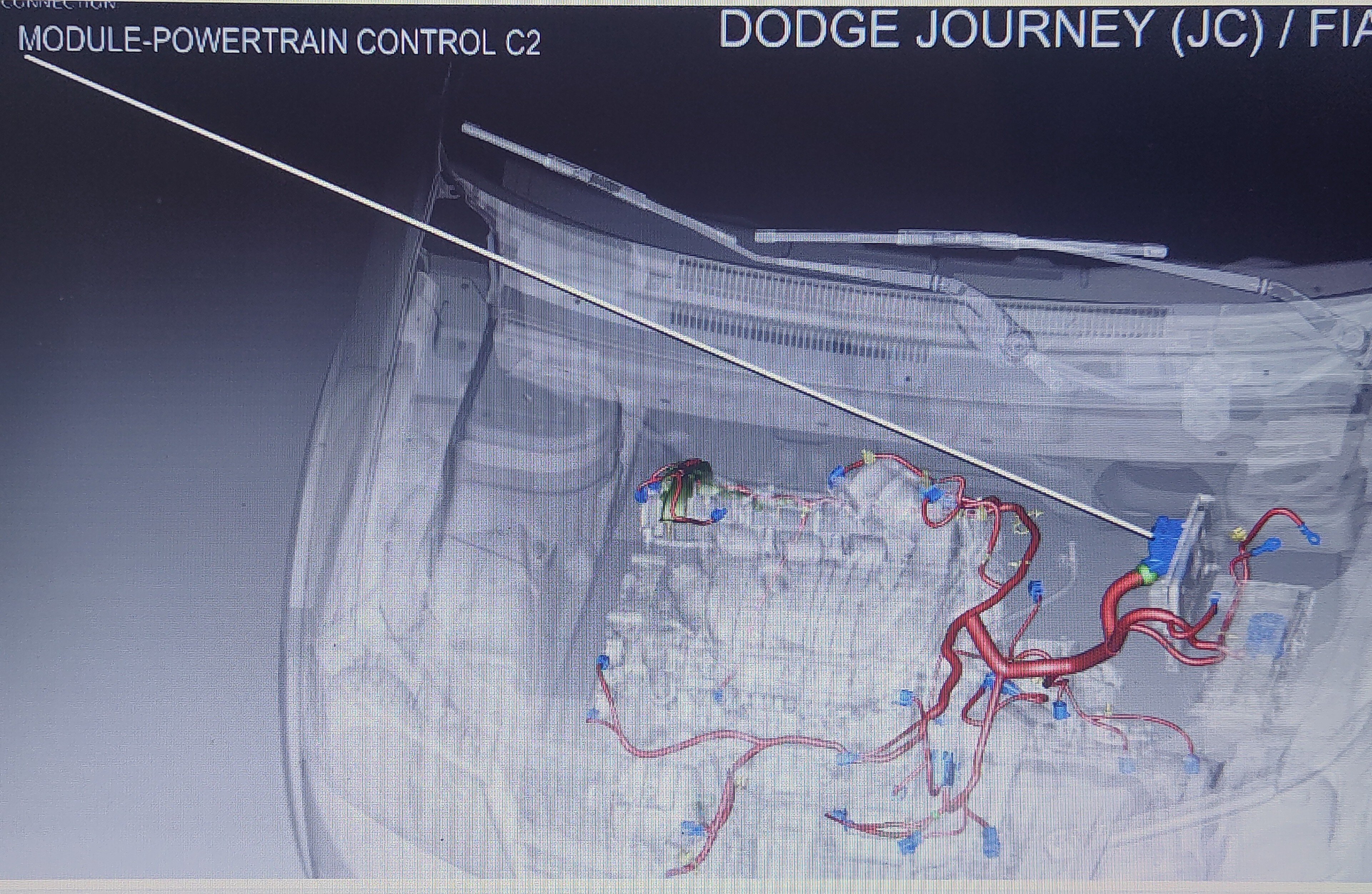

Dean H Posted July 20 Author Report Share Posted July 20 PCM plug - Same plug close up- The rest of the pin out is below. John/Horace 1 Quote Link to comment Share on other sites More sharing options...

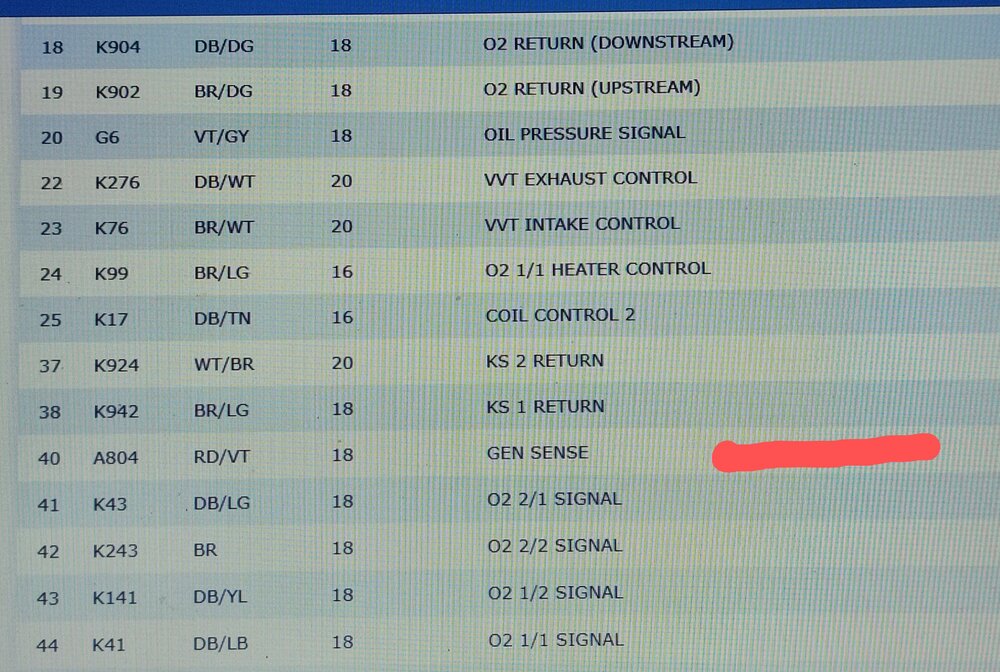

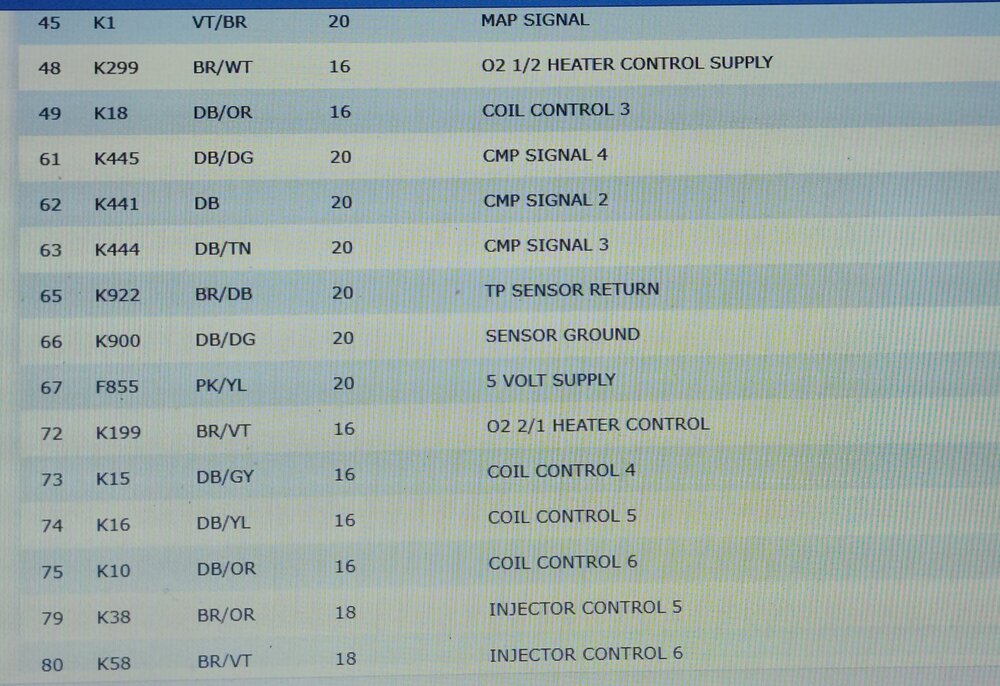

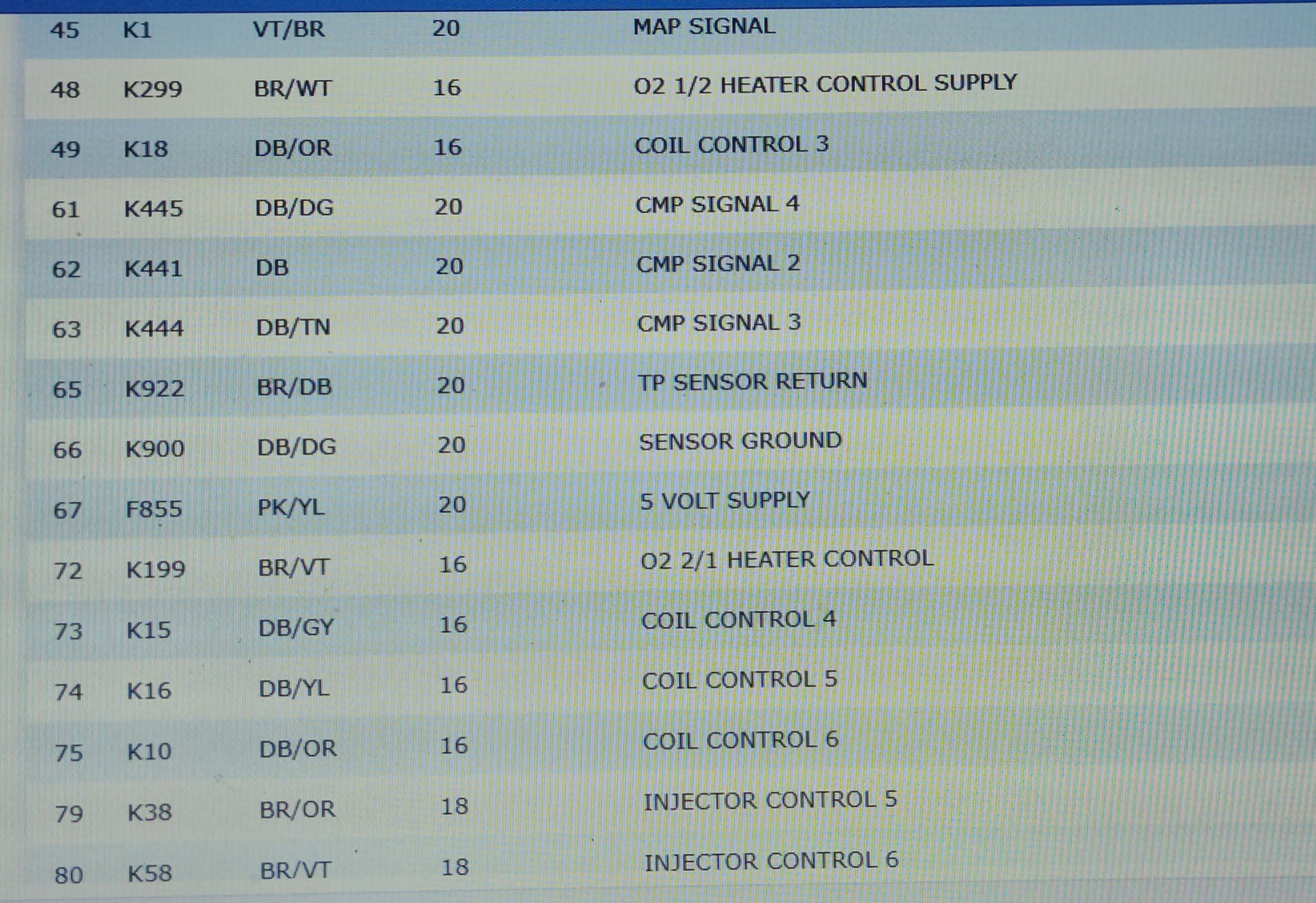

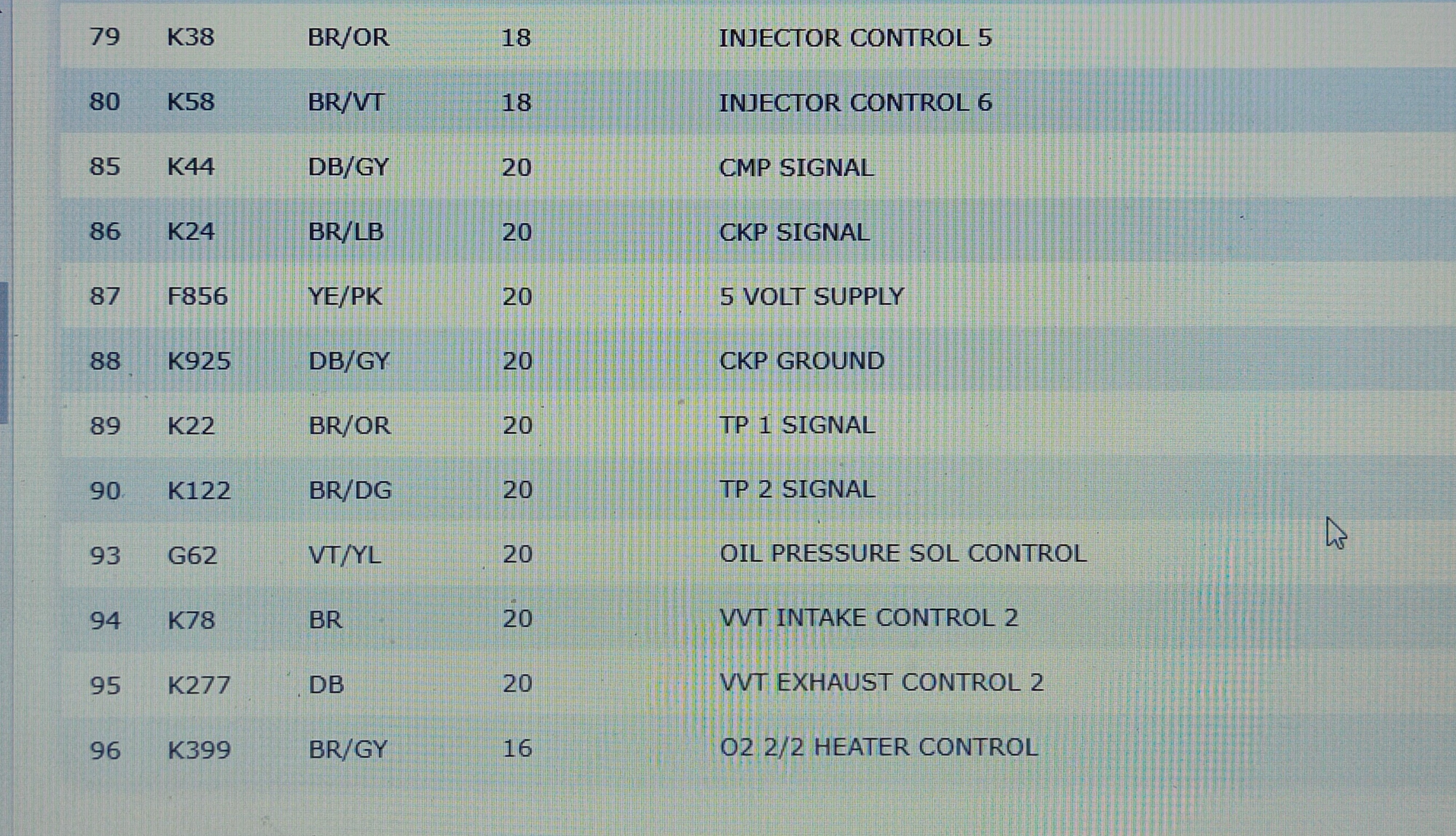

Dean H Posted July 20 Author Report Share Posted July 20 PCM plug pin out last 2 pages. John/Horace 1 Quote Link to comment Share on other sites More sharing options...
John/Horace Posted July 21 Report Share Posted July 21 Too bad this post can’t be be stickied on an electrical forum like some sites do. Very very useful for people without a Mitchel login. Search option is crude and awkward. Ground zero for complex electr problems. Even the title of this post…is so appropriate. Someone deserves member of the month award! Quote Link to comment Share on other sites More sharing options...

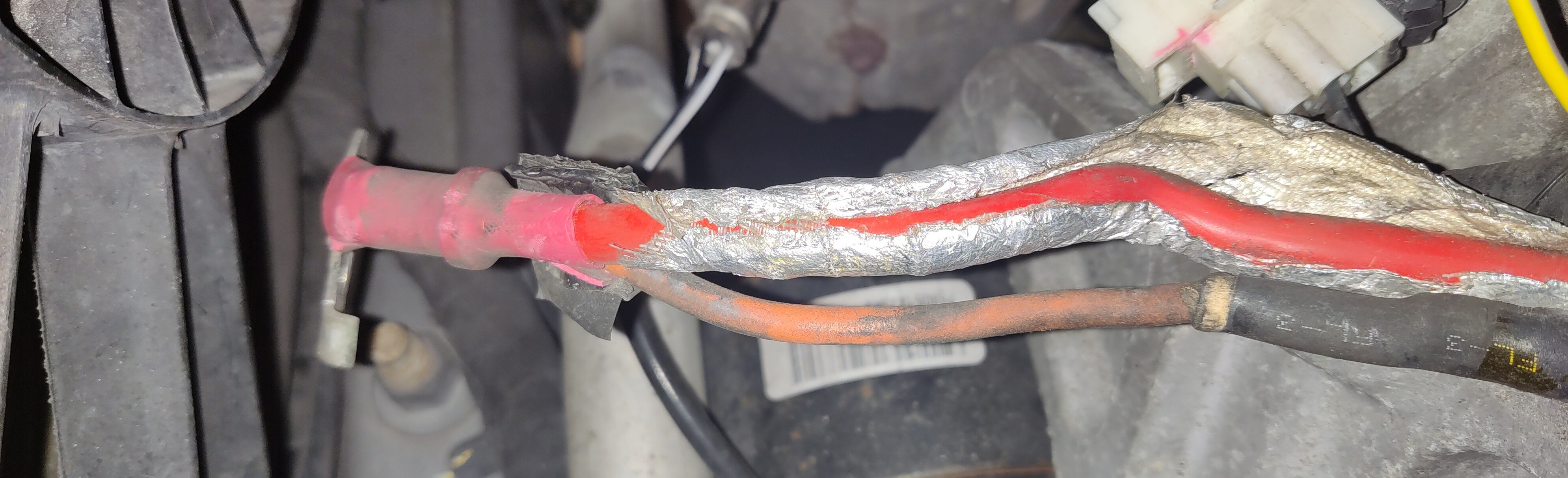

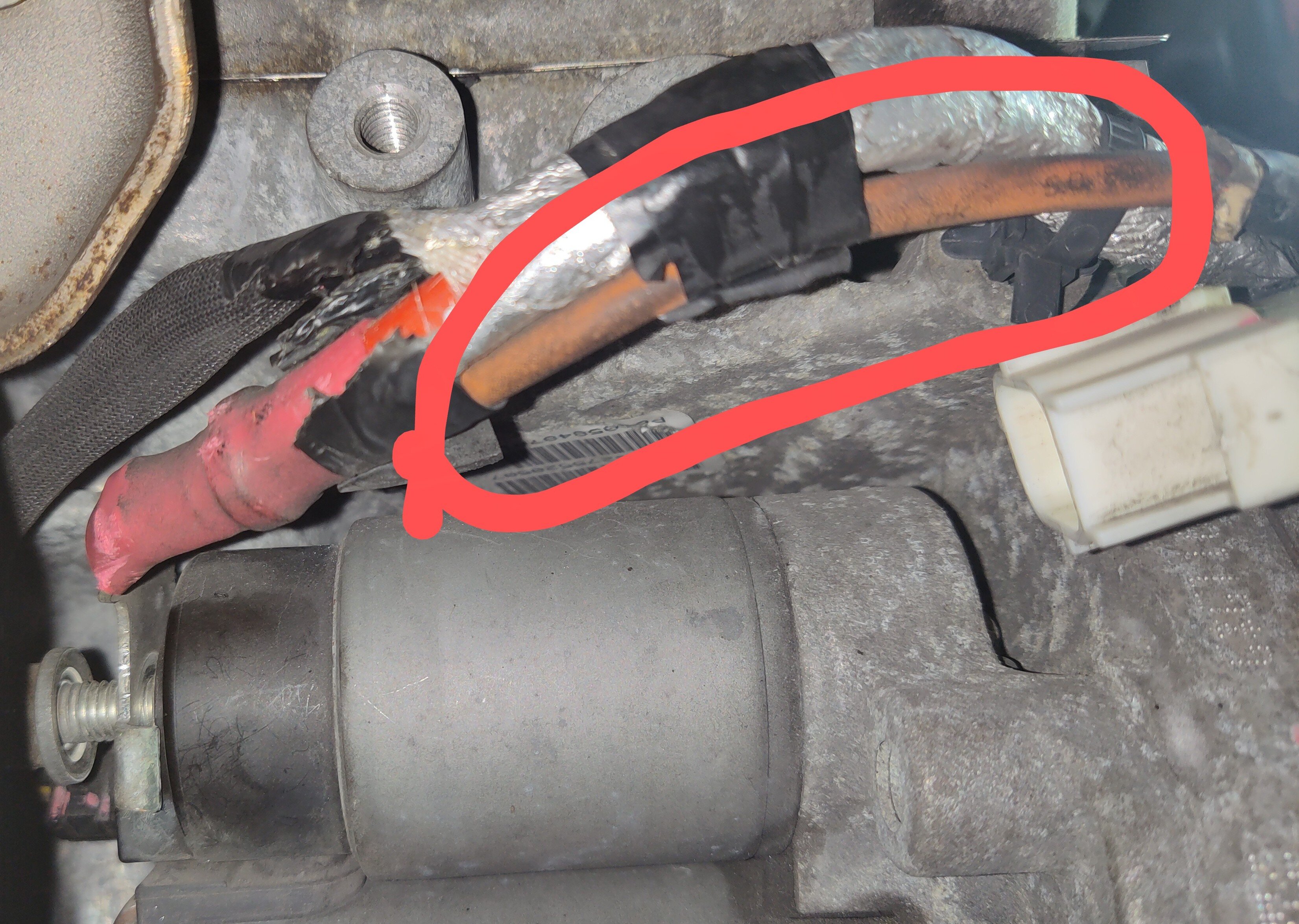

Dean H Posted July 22 Author Report Share Posted July 22 (edited) Here are 2 pictures of the alternator cable connection down at the starter. The orange cable is the fusible link on the alternator battery feed cable. Cables disconnected from starter. The red cable on top goes to the TIPM positive battery stud. The alternator battery feed cable. Orange fusible link. Edited July 22 by Dean H John/Horace 1 Quote Link to comment Share on other sites More sharing options...
