Lobitz68 Posted September 21, 2015 Report Share Posted September 21, 2015 Does anyone have a wiring diagram for the 2014 DJ? I am specifically interested in the polarity if the rear speakers... Which is positive and negative on the rear driver speaker and rear passenger speaker? Any help is appreciated! dhh3 1 Quote Link to comment Share on other sites More sharing options...
Lobitz68 Posted September 22, 2015 Author Report Share Posted September 22, 2015 I know one of you clowns has a wiring diagram... dhh3 and jkeaton 2 Quote Link to comment Share on other sites More sharing options...
jkeaton Posted September 22, 2015 Report Share Posted September 22, 2015 I don't. I would like to have a thread with wiring diagrams. dhh3 1 Quote Link to comment Share on other sites More sharing options...

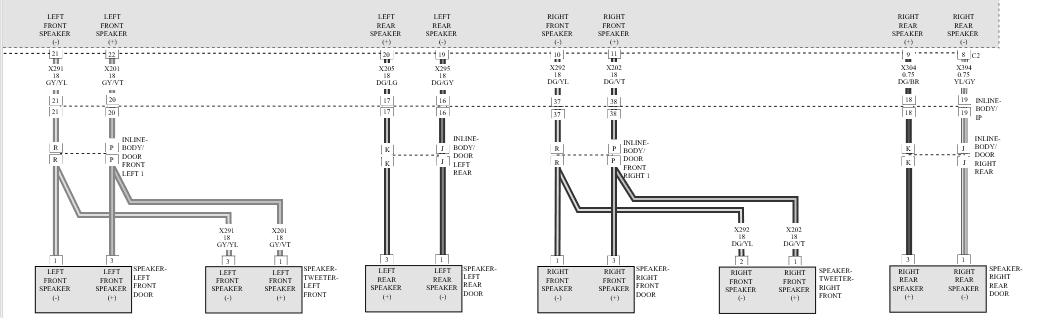

bigtsr Posted September 23, 2015 Report Share Posted September 23, 2015 Best I can do: dhh3, jkeaton and Lobitz68 3 Quote Link to comment Share on other sites More sharing options...
Lobitz68 Posted September 23, 2015 Author Report Share Posted September 23, 2015 Best I can do: Perfect! Thank you sir! dhh3 and jkeaton 2 Quote Link to comment Share on other sites More sharing options...
Journeyman425 Posted September 23, 2015 Report Share Posted September 23, 2015 Can't copy and paste from my DealerConnect website, but the positive wire color is DG/LG and the negative is DG/GY Lobitz68, jkeaton, vozaday and 1 other 4 Quote Link to comment Share on other sites More sharing options...
OhareFred Posted September 24, 2015 Report Share Posted September 24, 2015 https://techauthorityonlinedemo.extra.chrysler.com/service/repair/wiring/view/classic.htm Someone posted this awhile ago and i saved it, not sure if it still works but it did.... dhh3, jkeaton and daddyRT 3 Quote Link to comment Share on other sites More sharing options...
bigtsr Posted September 24, 2015 Report Share Posted September 24, 2015 I posted it and that's where I sourced the cut and paste. jkeaton and dhh3 2 Quote Link to comment Share on other sites More sharing options...
dhh3 Posted September 24, 2015 Report Share Posted September 24, 2015 Hey Lobitz68, what are you up to now? jkeaton 1 Quote Link to comment Share on other sites More sharing options...
jkeaton Posted September 24, 2015 Report Share Posted September 24, 2015 Hey Lobitz68, what are you up to now? Stay on topic..... dhh3 1 Quote Link to comment Share on other sites More sharing options...
Lobitz68 Posted September 29, 2015 Author Report Share Posted September 29, 2015 Best I can do: This was not correct on the 2014... Can't copy and paste from my DealerConnect website, but the positive wire color is DG/LG and the negative is DG/GY This was correct. Thanks. I ended up removing the door panel and looking at the speaker wiring as I was planning on tapping into it in the B pillar. Thanks! Hey Lobitz68, what are you up to now? I built a sub box that fits into the floor storage by the rear gate. Finally getting around to installing it. Using the rear speakers to wire up my LOC. dhh3 1 Quote Link to comment Share on other sites More sharing options...
dhh3 Posted September 30, 2015 Report Share Posted September 30, 2015 (edited) Stay on topic..... I believe that asking for a wiring diagram would indicate that another modification was in the works! I asked; he answered. EOS! Edited September 30, 2015 by dhh3 Quote Link to comment Share on other sites More sharing options...
